Automatic Multi Function EPP/ ETPU Moulding Machine SFA-1220

Products > Multi-Function Moulding Machine > Automatic Multi Function EPP/ ETPU Moulding Machine SFA-1220

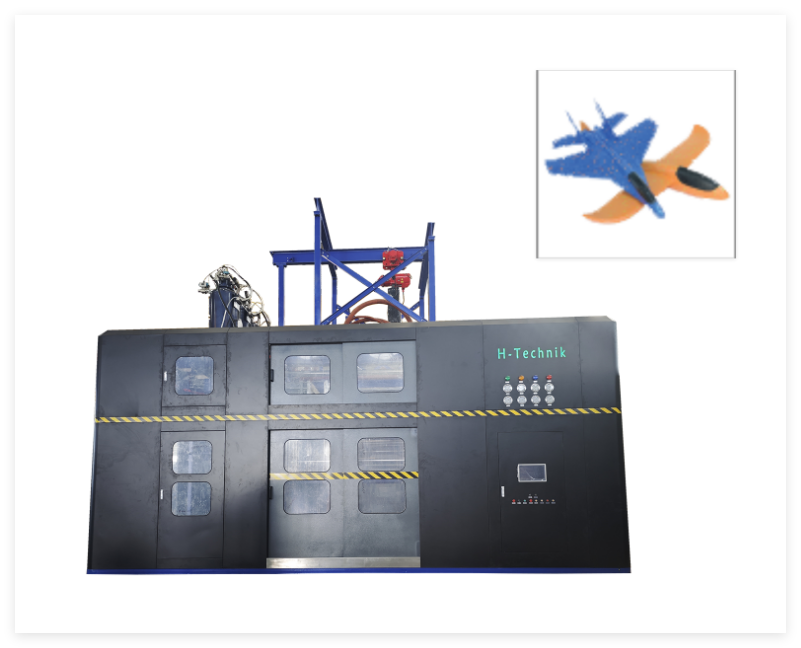

Automatic Multi Function EPP/ ETPU Moulding Machine SFA-1220

This multi-functional automatic molding machine integrates advanced automation control, precision sensing technology, and efficient energy management. It is designed for high-quality production of EPP and ETPU materials, complies with Industrial 4.0 standards, and ensures a safe, efficient, and environmentally friendly production environment.

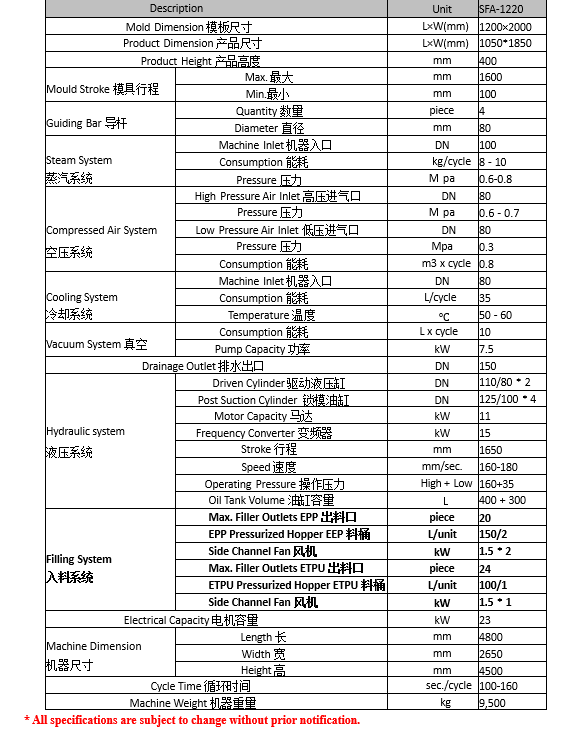

Press Frames Dimension: 1200 x 2000 mm
Stroke of Machine: 2000 mm
Operating Pressure (Max.): 5 bar


Machine Frame and Construction

  • Material: The frame is constructed using dimensional steel profiles

  • and welded with international square tubes. It undergoes CNC machining

  • and hot zinc galvanization for excellent anti-corrosion properties.

  • Guiding Bars: Coated with hard chrome for enhanced durability.


Control System

  • PLC Control Unit: Self-developed programmable logic controller with

  • USB update functionality and energy-saving solenoid valves for stable and fast response.

  • Touch Screen: 15.6-inch touch screen control interface

  • with remote monitoring and data collection capabilities.

  • CE Compliance: All electrical components comply with CE standards.



Steam System

  • Double Steam Valves: Main and auxiliary steam valves for faster

  • and better fusion quality, especially for thick products.

  • Precision Sensors: Four sets of sensors control steam pressurein the upper

  • and lower steam chambers for optimal fusion, particularly in multi-cavity, high-density products.

  • Safety Valves: Equipped with Yoshitake steam pressure reducing valves

  • and automatic shut-off valves to ensure safety (Industrial 4.0 standard).


Hydraulic System

  • Frequency Converter: Achieves faster driving and locking motions

  • with low energy consumption.

  • Locking Force: Two driven cylinders provide 22.8T locking force,

  • and four post-suction cylinders provide 15.9T each.


Material Filling System

  • EPP Filling System: 2 x 150-liter vertical pressurized filling tanks

  • with pressure sensors and 20 outlets, each equipped with an independent fan.

  • ETPU Filling System: 1 x 100-liter specially designed pressurized

  • filling tank with 24 outlets and an automatic blow-back material collection system.

  • Light Sensors: Equipped with minimum and maximum light sensors for color materials, especially black.

  • Independent Pressure Control: Each of the 3 tanks has independent pressure control.


Cooling System

  • Water Vaporization Cooling System: Newly developed system for minimal cooling time,

  • large coverage area, and high-temperature demolding, with reduced water consumption.

  • Vacuum System with Condensation Unit: Ensures stable water cooling for

  • ETPU materials and prevents vacuum system failure due to water suction.
