Block Molding Machine PSB-400-DZ

Products > Block Moulding Machine / Batch Pre-expander/Silo > Block Molding Machine PSB-400-DZ

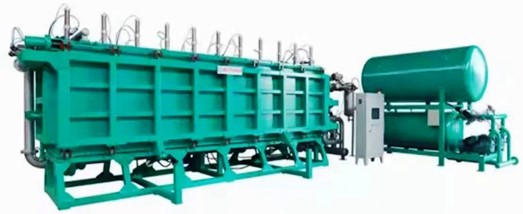

Block Molding Machine PSB-400-DZ

- The machine frame is welded steel Profile and plate which ensure high strength for additional safety of the machine.
- The frames are heat treatment after welding to release the welding tension.
- After heat treatment all the mould frames are machining and coated with anti-rust paint and top primer.


Technical Data

-             Complete with Block Conveying Line with Weighing Scale, Control Panel

-             Complete with Block Overhead Hopper and Material Hoses

-             Controlled by Mitsubishi PLC and Winview Touch Screen

-             With two extra hydraulic side locks for better locking

-             Use German Burkert Solenoid Valve

-             Use German Electrical Pressure Gauge

-             Mould size:                      4080 ×1240 ×1030mm

-             Block size:                4000 ×1200 x 1000mm

-             Density Range:         6-30KG/M3

-             Capacity:                          For density 7 g/l, around 3 Minutes Cycle

-             Steam entry:                                  DN 100

-             Steam consumption:                      12-17 KG /M3

-             Steam working pressure :        0.7 Mpa

-             Compressed air consumption :      2 m3 per cycle

-             Compressed air pressure :       0.6 - 0.8 Mpa

-             Power consumption:                      32.25 kW

-             Machine weight:                            approx. 12,000 kg

-             Overall dimension:                        9600 * 4500 * 3100mm
